รายละเอียดสินค้า:
|
| สี: | สีฟ้า | พิมพ์: | อัตโนมัติ |
|---|---|---|---|
| ระบบควบคุม: | การควบคุม PLC | วิธีการตัด: | ตัดไฮดรอลิก |
| ต่อเดือน: | 30sets | คนงาน: | 100 |
| แสงสูง: | roll forming equipment,roof tile roll forming machine |
||

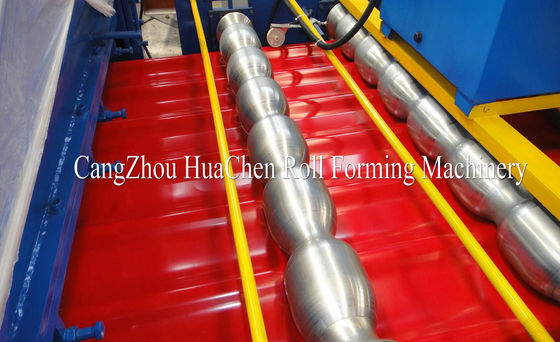

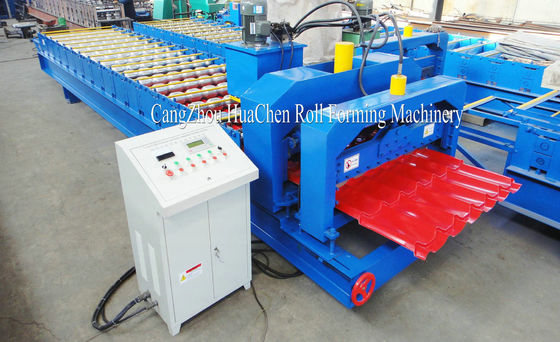

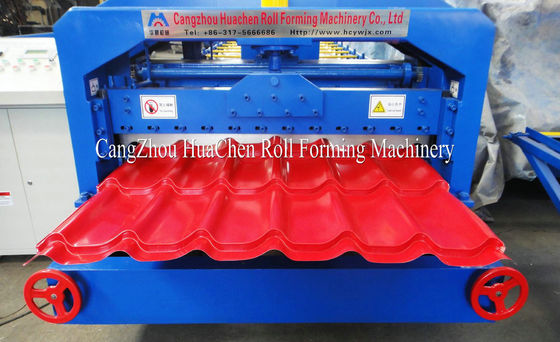

High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers
What's your machine application ?
Our roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
How about the parameters for Roll Forming Machine? If need some change, just tell me
1. Suitable to process: Color steel plate
2. Width of the plate: 1220mm
3. Rollers: 15 rows
4. Dimensions: 8.2*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
|
No. |
Main parameter of Glazed Tile Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1220mm |
|
3 |
Rollers |
15 rows |
|
4 |
Dimensions |
8200*1550*1510m |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
4m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting
Application

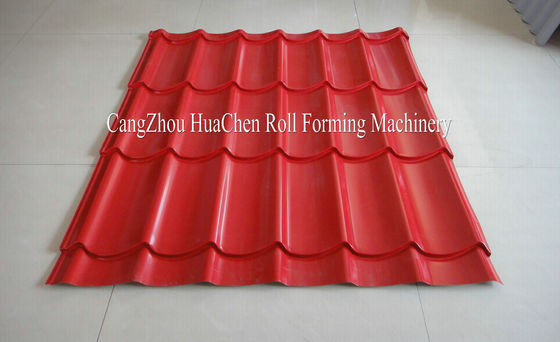

This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
Competitive Advantage
1. good service
2. easy installation
3. short delivery time
4. professional design team
5. easy to use
