High Speed Roof Wall Siding Panel Roll Forming Machine Construction Material Color Steel

ความคิดเห็นของลูกค้า
เครื่องใช้งานง่าย เจ้านายดีมาก

—— Mr.Angolon จากยุโรป

นี่คือผู้ผลิตที่ดีเป็นผู้สื่อสารภาษาอังกฤษที่ดีและฉันชอบเครื่องของคุณ มันมีคุณภาพดีและน่ารัก!

—— Mr.Mark จากแอฟริกา

ผู้จัดจำหน่ายที่ดี! ฉันชอบการจัดส่งที่รวดเร็วและรอบการผลิตที่รวดเร็ว

—— Mr.Jack จากอเมริกา

สนทนาออนไลน์ตอนนี้ฉัน

High Speed Roof Wall Siding Panel Roll Forming Machine Construction Material Color Steel

High Speed Roof Wall Siding Panel Roll Forming Machine Construction Material Color Steel
High Speed Roof Wall Siding Panel Roll Forming Machine Construction Material Color Steel

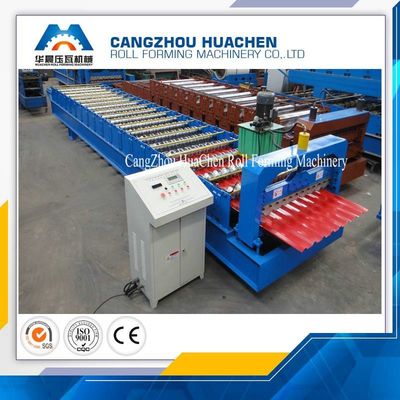

ภาพใหญ่ :  High Speed Roof Wall Siding Panel Roll Forming Machine Construction Material Color Steel

รายละเอียดสินค้า:
สถานที่กำเนิด: Botou Hebei China
ชื่อแบรนด์: HC
ได้รับการรับรอง: ISO
หมายเลขรุ่น: HC21
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1set
ราคา: 8000-29000USD
รายละเอียดการบรรจุ: Main machine is nude,the computer control box is packed by carton box
เวลาการส่งมอบ: 30days
เงื่อนไขการชำระเงิน: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
สามารถในการผลิต: 20 sets/month

High Speed Roof Wall Siding Panel Roll Forming Machine Construction Material Color Steel

ลักษณะ
แสงสูง:

sheet metal rolling equipment

,

roof sheet making machine

Product Description

1, We do Best, About Machine



1). To produce the best roof tile roll forming machine,feixiang is taking EUROPEAN quality standard;

2). Choose the best material and components, and adopting our 15 years experience;

3). Feixiang achieves that the machine capacity is double of the competitors;

4). The roof tile roll forming machine working speed can be 25m/min;

5). Only 1 worker to operate.



2, We do Detail, Machine Parameters



Product name roof tile roll forming machine
NO. Items Parameters Remark
1

Suitable



Material

Type GI/GL
Width 1000/1200/1250mm Custom
Thickness 0.30—0.70mm
2

Product

Specifications

Length Any length Programmed
Length Tolerance ±2mm/6m
3 Working Speed 10-15 m/min Standard machine
4 Control System Mitsubishi/Siemens PLC& transducer Custom
5 Total Power About 10KW
6 Total Weight About 5T Up to final design































3, We do Standard, Machine Components



For roof tile roll forming machine, according to our company standard, we will offer you following components as the standard configuration.



High Speed Roof Wall Siding Panel Roll Forming Machine Construction Material Color Steel 0
