High Speed Double Layer Sheet Metal Roll Forming Machines With Hydraulic Cutting Method

High Speed Double Layer Sheet Metal Roll Forming Machines With Hydraulic Cutting Method
High Speed Double Layer Sheet Metal Roll Forming Machines With Hydraulic Cutting Method
High Speed Double Layer Sheet Metal Roll Forming Machines With Hydraulic Cutting Method High Speed Double Layer Sheet Metal Roll Forming Machines With Hydraulic Cutting Method

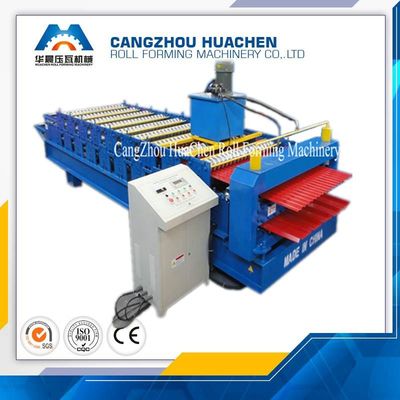

ภาพใหญ่ :  High Speed Double Layer Sheet Metal Roll Forming Machines With Hydraulic Cutting Method

รายละเอียดสินค้า:
สถานที่กำเนิด: Botou Hebei China
ชื่อแบรนด์: HC
ได้รับการรับรอง: ISO/CE
หมายเลขรุ่น: HC13-25
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1set
ราคา: 12000-17000USD
รายละเอียดการบรรจุ: Main machine is nude,the computer control box is packed by carton box
เวลาการส่งมอบ: 30days
เงื่อนไขการชำระเงิน: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
สามารถในการผลิต: 20 sets/month

High Speed Double Layer Sheet Metal Roll Forming Machines With Hydraulic Cutting Method

ลักษณะ
Model Number:: double layer roll forming machine Warranty: 18 month
control system: PLC control cutting method: hydraulic cut
working speed: 8-10m/min per month: 30 sets
แสงสูง:

corrugated roll forming machine

,

metal roll forming machine

1. The Product Description of Roll Forming Machine


(1). Brief Introduction
The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas.

(2). Working Flow of Roll Forming Machine
Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter

High speed double layer building used metal roofing roll forming machine

(3).Technical Detail

A. General

Suitable MaterialHRB60 or equivalent
Material Thickness0.2-0.6 mm
DimensionAbout 7.2*1.3*1.1m(L*W*H) , as per the drawing

Length of
the Sheet

You can set the length according to your need.
It is controlled by PLC
which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set
length.


B. Components Details

Roller MaterialHigh grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability
of our products.

Forming Steps11-16, according to the drawing.
Shaft MaterialΦ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,
high rigidity, hard to deform.

Cutting
Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.


C. Electric Components

Suitable Power380V, 50 Hz, 3 phase or according to your need.
Screen7 inch touch screen, easy to operate.
PLCDelta DVP14ES

Well-adapted to various conditions, such as moisture,
electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,
to ensure the length accuracy (±1mm,
far better than industrial standard ±3mm).

Length
Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.



2. More Pictures of Roll Forming Machine

High Speed Double Layer Sheet Metal Roll Forming Machines With Hydraulic Cutting Method 1High Speed Double Layer Sheet Metal Roll Forming Machines With Hydraulic Cutting Method 2High Speed Double Layer Sheet Metal Roll Forming Machines With Hydraulic Cutting Method 3


3. The Application of Roll Forming Machine


This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

High speed double layer building used metal roofing roll forming machine


4. Other Products for Choosing


Toppo Machinery Co.,Ltd. is a professional supplier for roll forming machine.

We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,
shutter door machine, floor decking machine and other associated equipment.

Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.
