Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting

Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting
Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting

ภาพใหญ่ :  Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting

รายละเอียดสินค้า:
สถานที่กำเนิด: Botou Hebei China
ชื่อแบรนด์: HC
ได้รับการรับรอง: ISO
หมายเลขรุ่น: HC280
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1set
ราคา: 13000-29000USD
รายละเอียดการบรรจุ: Main machine is nude,the computer control box is packed by carton box
เวลาการส่งมอบ: 30days
เงื่อนไขการชำระเงิน: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
สามารถในการผลิต: 20 sets/month

Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting

ลักษณะ
แสงสูง:

roll form equipment

,

metal forming machines

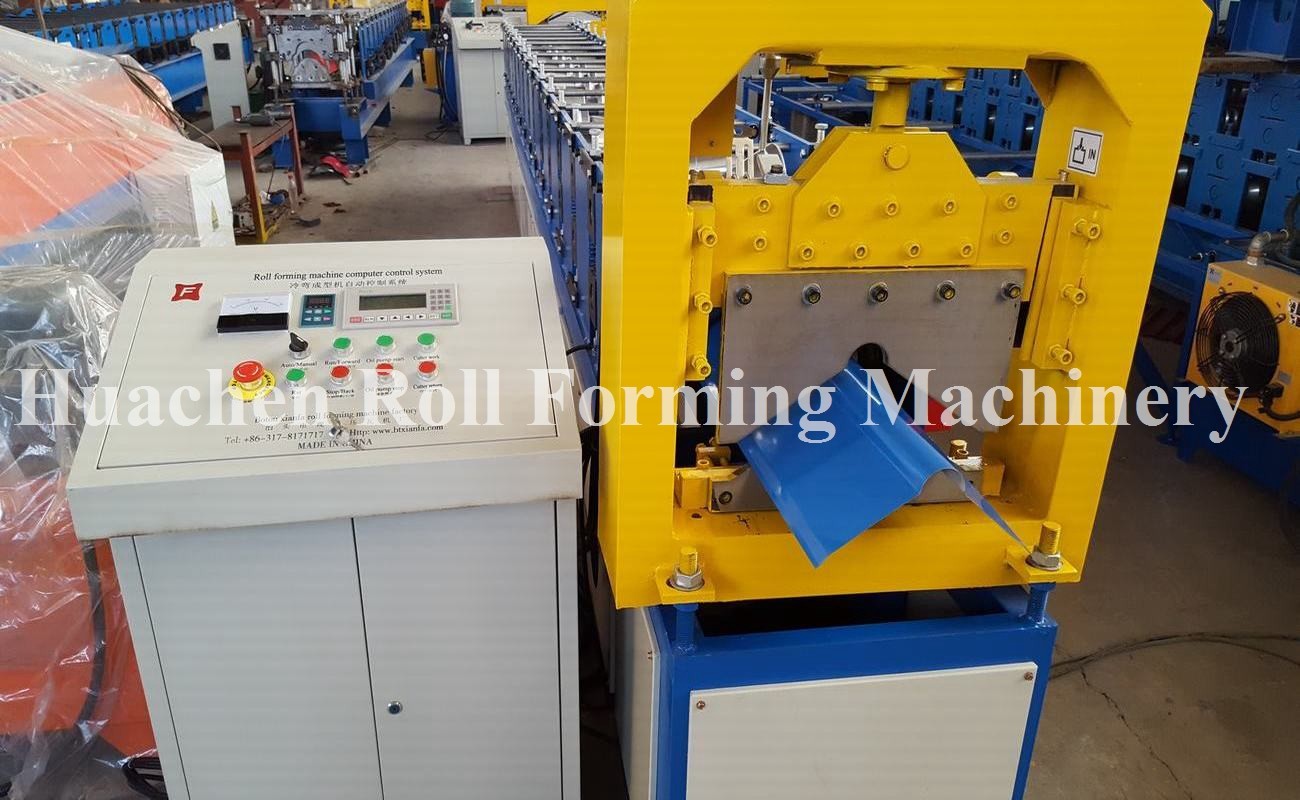

Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting



Description



The ridge caps made by our Steel Roof Ridge Cap Cold Roll Forming Machine are beautiful and bright. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. The ridge caps produced by this machine look beautiful , elegant and noble .They are widely used as the roof of garden ,factory ,hotel, exhibition center and villa ,etc .



Specifications


  • Material thickness: 0.3-0.6mm for Roof Ridge Cap
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 7.5 Kw
  • Forming Station: approx 15 ( depend on profile drawing )
  • Axis Diameter: ¢ 75mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 5 Ton
Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting 0Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting 1

Main Components


  • Decoiler ---------------------------------------------=- 1 Unit
  • Feeding guide ---------------------------------------- 1 Unit
  • Main roll forming machine --------------------------- 1 Unit
  • Hydraulic pressing device --------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station -------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table ----------------------------------------- ---1 Unit


Working Flow


Decoiler --- Fedding Guide --- Roll Forming --- Pressing --- Cut-to-length --- Run out table
