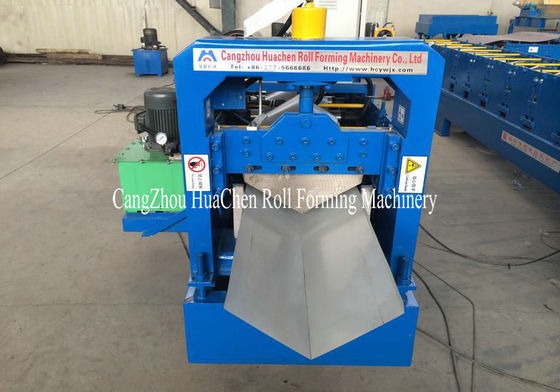

7.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House

7.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House

Quick details:

1. Condition: New, Type: Tile Forming Machine

2. Tile Type: Steel, Use: Roof

3. Place of Origin: Wuxi, Brand Name: LUOLE

Description

The ridge caps made by our Steel Roof Ridge Cap Cold Roll Forming Machine are beautiful and bright. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. The ridge caps produced by this machine look beautiful , elegant and noble .They are widely used as the roof of garden ,factory ,hotel, exhibition center and villa ,etc .

Specifications

• Material thickness: 0.3-0.6mm for Roof Ridge Cap
• Material width: depend on customer’s requirement
• Decoiler Type: manual or automatical type ( depend on customer’s requirement )
• Weight Capacity Of Decoiler: 2 Ton
• Main Motor Power: 5.5 Kw
• Hydraulic Motor Power: 7.5 Kw
• Forming Station: approx 15 ( depend on profile drawing )
• Axis Diameter: ¢ 75mm
• Working Speed: 0-15 m/min
• Transporting Type: Chain Transmission
• Heat Treatment of Cutting Blade: HRC 50-60
• Type of Cutting: Hydraulic cutting
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand
• Machine Weight: about 5 Ton

Main Components

• Decoiler ---------------------------------------------=- 1 Unit
• Feeding guide ---------------------------------------- 1 Unit
• Main roll forming machine --------------------------- 1 Unit
• Hydraulic pressing device --------------------------- 1 Unit
• Hydraulic cutting device ------------------------------ 1 Unit
• Hydraulic Station -------------------------------------- 1 Unit
• PLC computer control -------------------------------- 1 Unit
• Output table ----------------------------------------- ---1 Unit

Working Flow

Decoiler --- Fedding Guide --- Roll Forming --- Pressing --- Cut-to-length --- Run out table

Reference Pictures

Application

Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap.

Our Advantages

1. Specialized in Steel Roof Ridge Cap Cold Roll Forming Machine since 2004.

2. Keeping improving the quality.

3. Low labor cost.

4. Convenient transportation.

5. Complete supporting industries.
