Horizontal Speed 15-18m / min Cold Roll Former , Corrugated roofing sheet making machine

Horizontal Speed 15-18m / min Cold Roll Former , Corrugated roofing sheet making machine
Horizontal Speed 15-18m / min Cold Roll Former , Corrugated roofing sheet making machine
Horizontal Speed 15-18m / min Cold Roll Former , Corrugated roofing sheet making machine Horizontal Speed 15-18m / min Cold Roll Former , Corrugated roofing sheet making machine

ภาพใหญ่ :  Horizontal Speed 15-18m / min Cold Roll Former , Corrugated roofing sheet making machine

รายละเอียดสินค้า:
สถานที่กำเนิด: CN
ชื่อแบรนด์: HC
ได้รับการรับรอง: CE ISO
หมายเลขรุ่น: HC8-33
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1 set
ราคา: USD19000-25000 per set
รายละเอียดการบรรจุ: Standard package
เวลาการส่งมอบ: 35 days
เงื่อนไขการชำระเงิน: D/A, L/C, D/A, D/P, T/T
สามารถในการผลิต: 20 sets per month

Horizontal Speed 15-18m / min Cold Roll Former , Corrugated roofing sheet making machine

ลักษณะ
Usage: Roof and wall Material: PPGI, GI
Operation: Need 1 person Capacity: 2-10m/min
Weight: 6T Size: 7*1.55*1.91m
Life time: 30 Years Warranty: Whole life
แสงสูง:

metal roll forming machine

,

sheet metal roll forming machines



Horizontal Speed 15-18m / min Cold Roll Former , Corrugated roofing sheet making machine



Application:

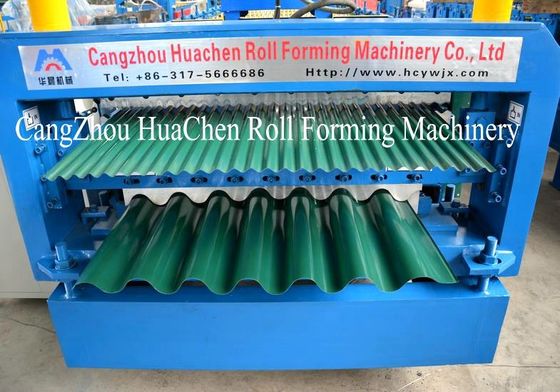

Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.

The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.



Technical Parameters:



1) Main motor power: 5.5kw

2) Drive: Chain

3) Main shaft dia: ¢76mm material: 45# forge steel and quenched

4) Roller material: 45# forge steel and quench treatment hardness 58-62, chrome coated 0.05mm

5) Roll station: 16 groups for upper layer and 20 groups for lower layer

6) Raw material: 0.3-0.8mm

7) Width of raw material: 1250mm

8) Valid width after fromed: 1150mm&1000mm9) Working speed: 10m--15m/min(Exclude cutting time)

10) Length Tolerance: ±2mm

11) Weight of machine: about 8ton

12) Size of machine: About 10500×1800×1900mm L x W x H

13) Color of machine: depend on customer14) Coder: Omron

15) Control: PLC Panasonic, made in Japan. 380V 50HZ

16) Computer operating panel: touching screen

17) Cutting: Hydraulic cutting18) Auto cutting when reach the set length.

19) Hydraulic power: 3KW

20) Blade material: Cr12,quenched 58°-62°

21) Working pressure:16mpa

22) Cutting tolerance: +/- 1.5mm

Horizontal Speed 15-18m / min Cold Roll Former , Corrugated roofing sheet making machine 0

Horizontal Speed 15-18m / min Cold Roll Former , Corrugated roofing sheet making machine 1

Working flow:



Uncoiler—Feeding—roll forming--- hydraulic cut to length—output table





Character of main structure





a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.

b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

d) It is very easy to install the equipment and suitable for producing in the factory.

e) Low noise with high efficiency



Advantage:



available for two profiles roof panel shared one frame, save the cost.

1) Used to produce different roof panels and wall panels
2) Produced panels have such advantages as below:
a) Fine profile
b) Attractive color
c) Agile connecting
d) Slightly curved
3) dual-level roll forming machine
4) We can design and manufacture different type of it to hit your particular profiles
