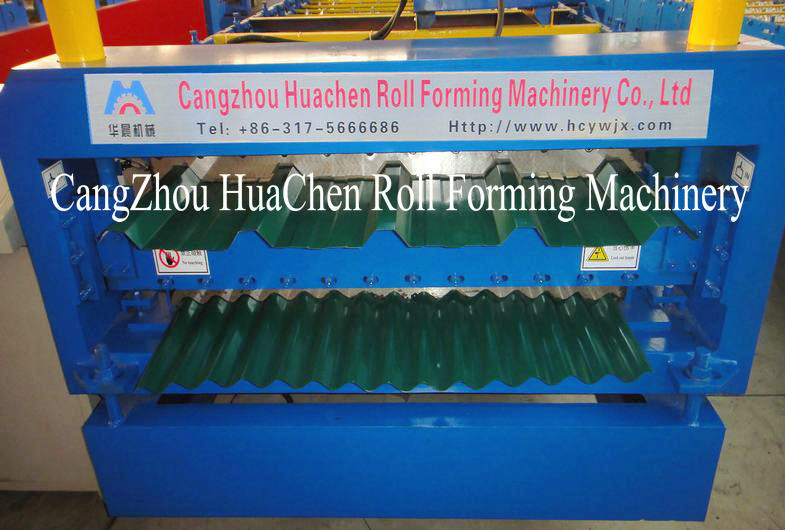

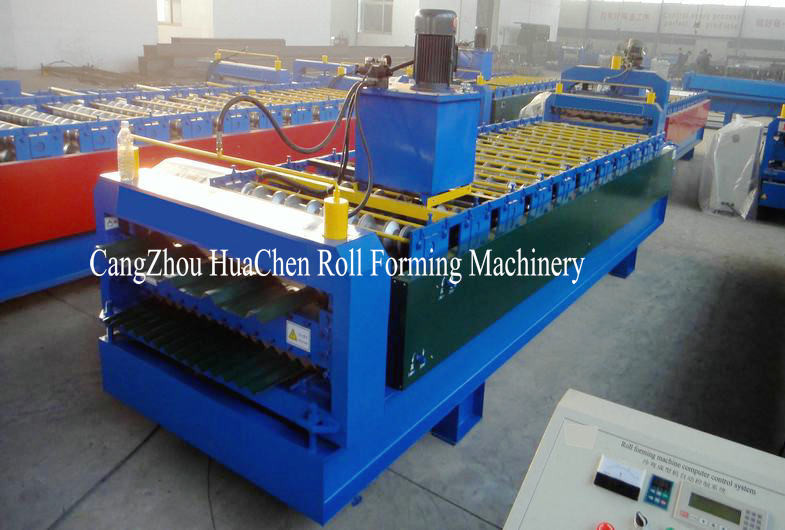

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed
Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed
Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed

ภาพใหญ่ :  Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed

รายละเอียดสินค้า:
Place of Origin: Botou Hebei China
ชื่อแบรนด์: HC
ได้รับการรับรอง: ISO
Model Number: HC18-28
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: 15000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment,
Supply Ability: 20 sets/month

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed

ลักษณะ
Usage: roof thickness: 0.3-0.6mm
weight: 6.6T warranty: 1 year
แสงสูง:

metal roll forming machine

,

corrugated roll forming machine

Trapezoidal Roof Wall Panel Cold Roll Former​ Application

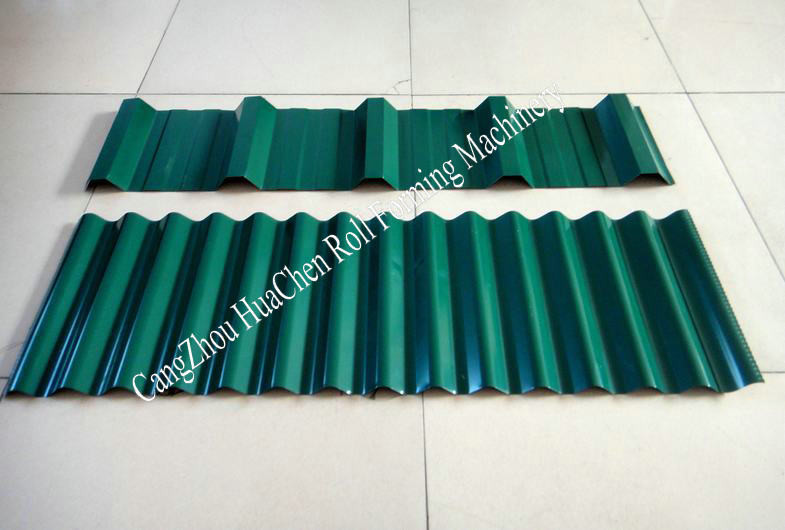

Our Trapezoidal Roof Wall Panel Cold Roll Former can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Trapezoidal Roof Wall Panel Cold Roll Former

Main Roll Forming Machine
Roller station12+12 rows
Material of rollerHigh grade 45# forged steel plated with hard chrome plating
Material of cutterCr12 mould steel with quenched treatment

Material
TypePPGI GI AL
Material widthcustomized
Material thickness0.3-0.6mm

Others
Speed20m/min
PLC systemEURA or customized
Weight5.6T

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 0

Trapezoidal Roof Wall Panel Cold Roll Former Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 1Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 2Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 3

Trapezoidal Roof Wall Panel Cold Roll Former​​ Parts

Detailed Images

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 4

5T Manual decoiler

Dimensions: 1700*1000*800
Width: 1250mm
Inner Diameter: 450-508mm
Capacity: 5T
Quality: 1 set
We also have Hydraulic type for 5T to 10 T .

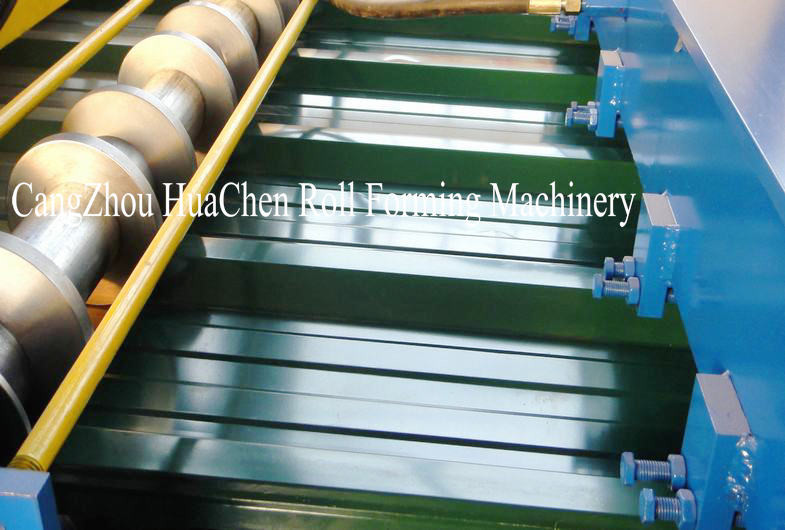

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 5

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 6

Hydraulic Pump Station

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PLC control system

PLC Brand : EURA or Customized
Language: English and Chinese
Control panel: Button or Touch Sreen
Frequency converter : EURA or customized
HMI : Easy to operate

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 7

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 8

Hydraulic Cutting

Forming and Cutting: Cut the sheet after roll forming to required length
Material of blade: Cr12, 58-62 HRC hardness
Hydraulic power : 4KW
Length measuring : Automatic encoder length measuring
Tolerance of length : +/- 1.5mm for each piece

Out Put Table

Size: 1500*1300*700mm
Quantity: 2 sets
We also have Auto stacker for automatic production line .

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 9


Our Service



Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 10Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 11

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 12Size: 11500 (L) * 1500 (W) * 1510 (H)
Weight: 28T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 13 Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 14 Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed 15
