รายละเอียดสินค้า:
|
| ความหนาของแผง: | 0.3-0.6มม | กำลังมอเตอร์: | 4+4KW |
|---|---|---|---|
| โครงเครื่อง: | ลำแสง 350 ชม | วิธีการตัด: | การตัดไฮดรอลิก |
| ประเภท Decoiler: | Decoiler ไฮดรอลิก/แบบแมนนวล | วัสดุลูกกลิ้ง: | 45# เหล็ก |
| ประเภทเครื่อง: | เครื่องขึ้นรูปม้วน | กำลังการผลิต: | 15-20ม./นาที |
Main Technical Parameters
|

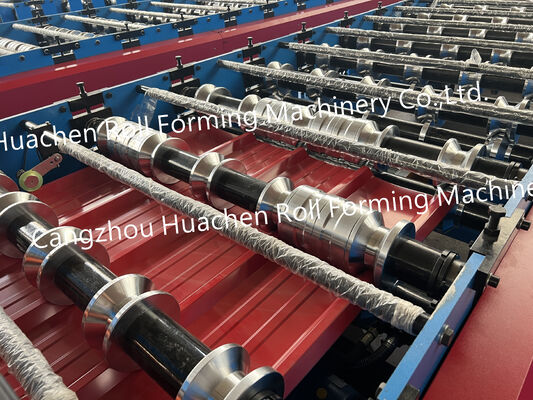

Roller Stations |
11Stations |
|
Roller & Shaft Material |
45# Steel Quenching and Plating |
|
Diameter of Shaft |
Φ70mm |
|
Cutter Material |
CR12 |
|
Drive Type |
Chain Drive |
|
Speed |
15-20m/min |
|
Total Power |
4+4KW |
|
Voltage |
380V 50Hz3Phases |
Product Overview

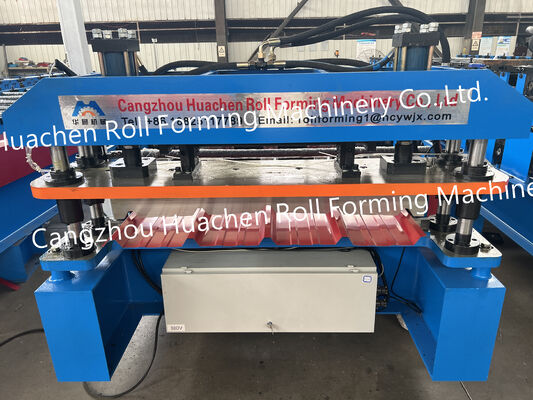

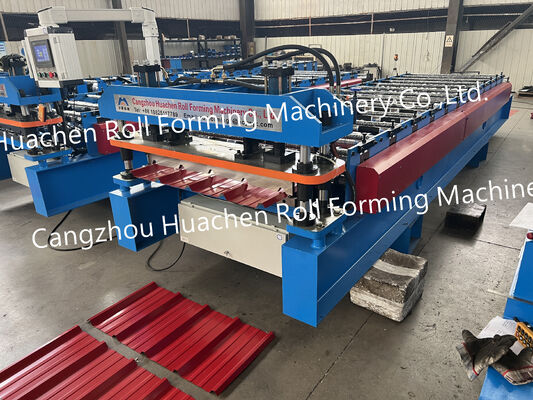

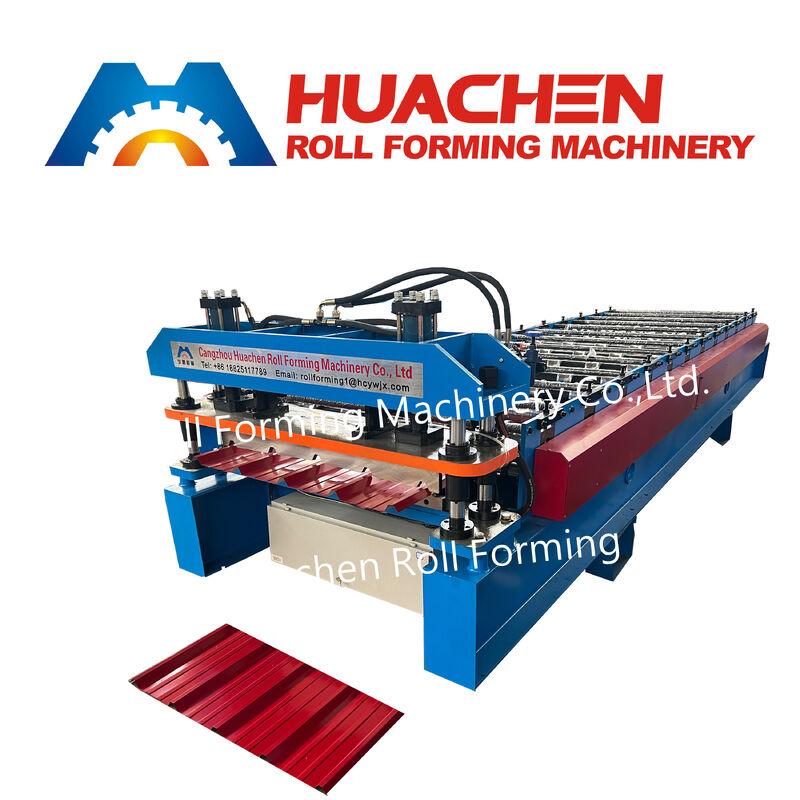

The Wall Panel Roll Forming Machine is a highly efficient industrial solution engineered for manufacturing wall panels used across diverse construction applications. This robust equipment delivers consistent precision and speed, making it ideal for large-scale production facilities seeking to produce high-quality building materials.
Key Features
Product Name: Wall Panel Roll Forming Machine
Machine Type: Roll Forming Machine
Roller Material: High-quality 45# Steel for durability and precision
Shaft Material: 45# Steel ensuring strength and long service life
Machine Frame: Robust 350 H Beam frame for stability and support
Decoiler Type: Available with Hydraulic or manual Decoiler options
Suitable for manufacturing hanging board roll forming machine panels
Ideal for producing wall roll forming machine components
Capable of forming sliding roll forming machine elements efficiently
Applications
The HC Wall Panel Roll Forming Machine is certified with CE standards and designed for producing high-quality wall panels used in residential, commercial, and industrial construction. It's ideal for manufacturing exterior and interior wall panels, roofing panels,and partition walls for prefabricated houses, warehouses, factories, and agricultural buildings.
Customization & Ordering
Our HC model roll forming machine supports customization to meet specific production requirements. With a minimum order quantity of 1 set and supply capacity of 60 sets per month, we offer flexible solutions for businesses of all scales. The machine is securely packaged in 40GP containers for safe delivery.
Support & Services
We provide comprehensive technical support including installation guidance, operational training, and troubleshooting. Our team offers detailed user manuals, maintenance schedules, and readily available spare parts to ensure optimal machine performance and minimize downtime throughout the equipment's service life.
