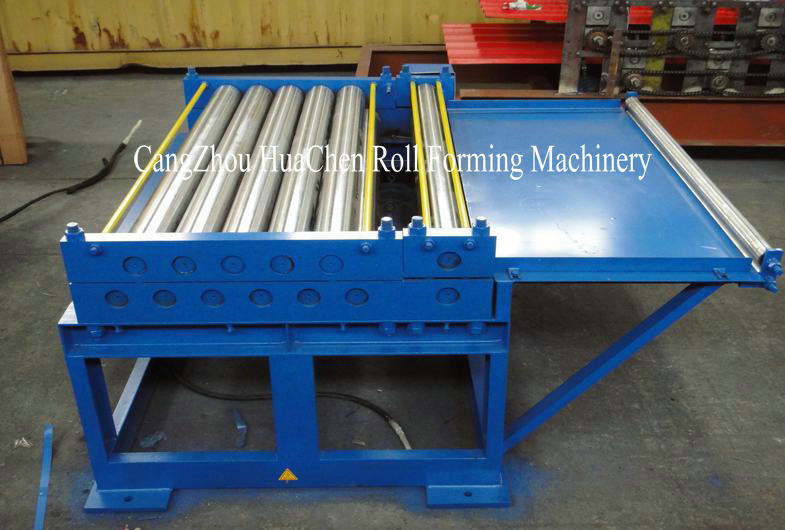

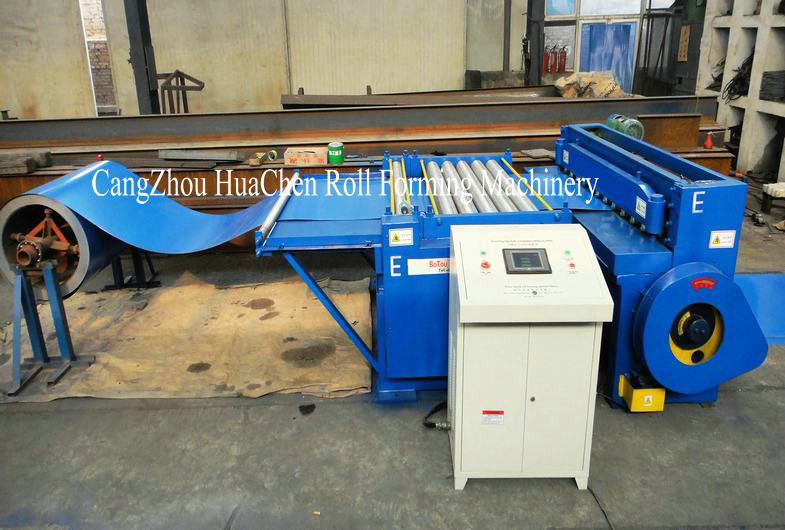

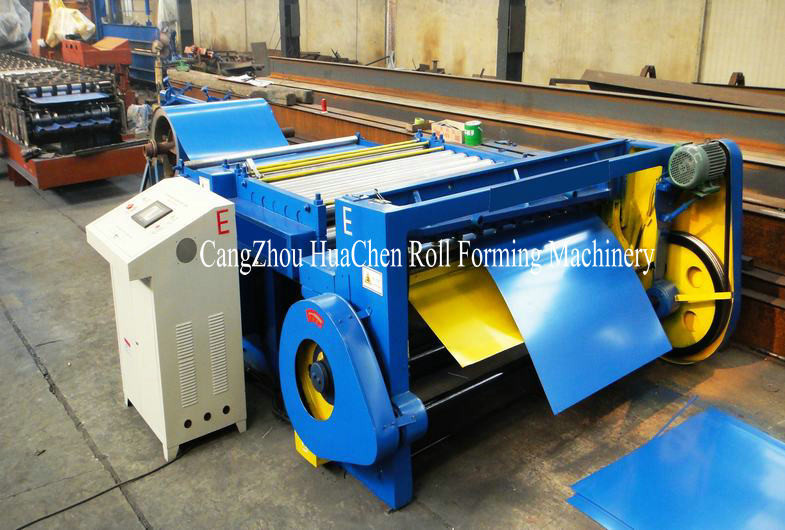

1mm Thickness Metal Plate Leveling And Cutting Machine for Width 1000mm - 1250mm
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1000-1250mm
3. Rollers: 3 rows
4. Dimensions: 3.5*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Hydraulic: 40#
10. Processing precision: Within 1.00mm
11. Control system: PLC control
Description:
Main parameter
|
No. |
Main parameter of Flatting-Cutting Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000-1250mm |
|
3 |
Rollers |
3 rows |
|
4 |
Dimensions |
3.5*1.55*1.51m |
|
5 |
Power |
4+4kw |
|
6 |
Thickness of the plate |
0.3-0.7mm |
|
7 |
Productivity |
25m/min |
|
8 |
Voltage |
380V 50Hz 3phases |
|
9 |
Hydraulic |
40# |
|
10 |
Processing precision |
Within 1.00mm |
|
11 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-cutting
Application
use for cut the sheet to strips, also use for other accessories.
Competitive Advantage
1. ISO certification
2. CE certification
3. PLC Panasonic
4. One year free warranty
5. Low loss, easy operate
