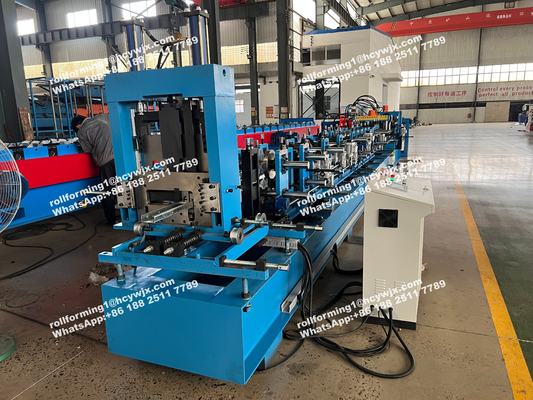

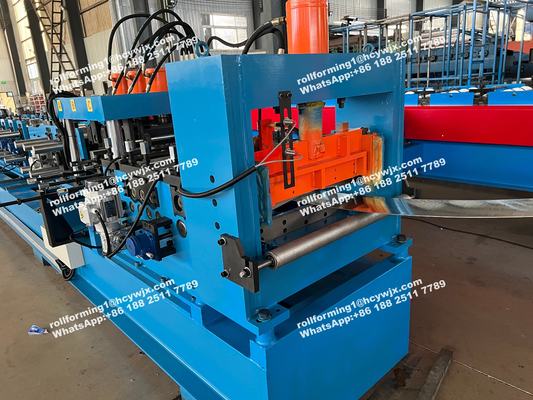

Automatic 80 to 300 mm adjusting c z purlin interchangeable roll forming machine

Automatic 80 to 300 mm adjusting c z purlin interchangeable roll forming machine

1. The Chart of Process Flow
Decoiling--active feeding--roll forming--measuring length-- cutting to length--product to stand

2. Main Equipment
Decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system.

Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate: 175/465mm

3. Rollers: 13 rows

4. Dimensions: 6.7*1.35*1.51m

5. Power: 11+7.5kw

6. Rolling material: shaft bearing steel(quenching)

7. Thickness of the plate:1.5-3mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

3. Technical Parameters

C shape purline Roll Forming Machine Main parameter

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting

Application:

C purline formed by C purline forming machine,advantages of well compressive strength and flatness; automatioc measureing, cutting and punching; high-level of automation and conveniently installation.
It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.

Competitive Advantage

1. ISO certification

2. CE certification

3. PLC Panasonic

4. One year free warranty

5. Low loss, easy operate
