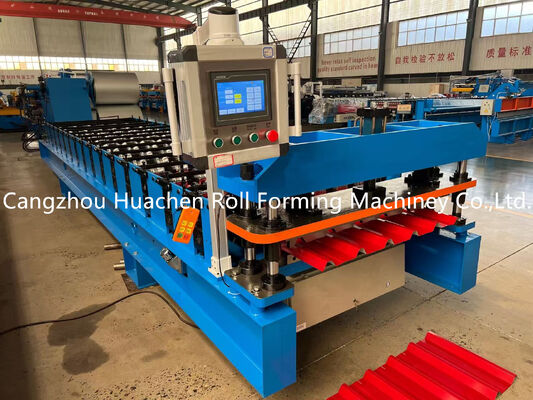

Hydraulic Corrugated Panel Metal Roll Forming Machine , Roofing Sheets Manufacturing Machine

ความคิดเห็นของลูกค้า
เครื่องใช้งานง่าย เจ้านายดีมาก

—— Mr.Angolon จากยุโรป

นี่คือผู้ผลิตที่ดีเป็นผู้สื่อสารภาษาอังกฤษที่ดีและฉันชอบเครื่องของคุณ มันมีคุณภาพดีและน่ารัก!

—— Mr.Mark จากแอฟริกา

ผู้จัดจำหน่ายที่ดี! ฉันชอบการจัดส่งที่รวดเร็วและรอบการผลิตที่รวดเร็ว

—— Mr.Jack จากอเมริกา

สนทนาออนไลน์ตอนนี้ฉัน

Hydraulic Corrugated Panel Metal Roll Forming Machine , Roofing Sheets Manufacturing Machine

Hydraulic Corrugated Panel Metal Roll Forming Machine , Roofing Sheets Manufacturing Machine
Hydraulic Corrugated Panel Metal Roll Forming Machine , Roofing Sheets Manufacturing Machine
Hydraulic Corrugated Panel Metal Roll Forming Machine , Roofing Sheets Manufacturing Machine Hydraulic Corrugated Panel Metal Roll Forming Machine , Roofing Sheets Manufacturing Machine

ภาพใหญ่ :  Hydraulic Corrugated Panel Metal Roll Forming Machine , Roofing Sheets Manufacturing Machine

รายละเอียดสินค้า:
Place of Origin: Botou Hebei China
ชื่อแบรนด์: HC
ได้รับการรับรอง: ISO
Model Number: HC30
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Hydraulic Corrugated Panel Metal Roll Forming Machine , Roofing Sheets Manufacturing Machine

ลักษณะ
type: Hydraulic Corrugated Metal Panel Roofing Sheet Forming Machine 5m / min rollers: 14
roller material: No.45 steel warranty: 12 month
Use: Roof Power(W: 5.5KW+4KW
Voltage: 380V 50Hz 3phases
แสงสูง:

cold roll forming machine

,

roof panel roll forming machine

Hydraulic Corrugated Panel Metal Roll Forming Machine , Roofing Sheets Manufacturing Machine



Technical data of metal roof tile roll forming machine



Suitable material color steel sheet;0.3-0.7mm,
Working speed about1.5-5m/min
stress 235MPa,345MPa,550MPa.
Power Main motor power: 5.5 Kw(Depend on final design)
Hydraulic station power: 4Kw(Depend on final design)
Material of forming rollers No.45 steel, plated with chrome on surface.
Material of cutter,pressing die Cr12 mould steel with quench treatment, HRC58-60
Material of shaft High quality 45# steel, Roller grinder milling.
Shaft diameter 72mm
Controlling system Mitsubishi PLC & converter
Total weight of machine About 9500KGS
Machine’s size about 18m×1.8m× 1.5m (Depend on final design)





Layout drawing of machine



Hydraulic Corrugated Metal Panel Roofing Sheet Forming Machine 5m / min





Our Roll Forming Machine’s advantages



1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong



2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.



3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.



5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.



6. powerful driving system: big inch train,or gear box driving system.



6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

Hydraulic Corrugated Panel Metal Roll Forming Machine , Roofing Sheets Manufacturing Machine 1Hydraulic Corrugated Panel Metal Roll Forming Machine , Roofing Sheets Manufacturing Machine 2
