รายละเอียดสินค้า:
|
| type: | Aluminium Metcopo Step Tile Roof Sheet Forming Machine Rollform Equipment | rollers: | 11 |
|---|---|---|---|
| roller material: | No.45 steel | warranty: | 12 month |
| Voltage: | 380V 50Hz 3phases | Material of the cutting plate: | Cr12 |
| Main frame: | 350H Steel | ||
| แสงสูง: | cold roll forming machine,roof panel roll forming machine |
||

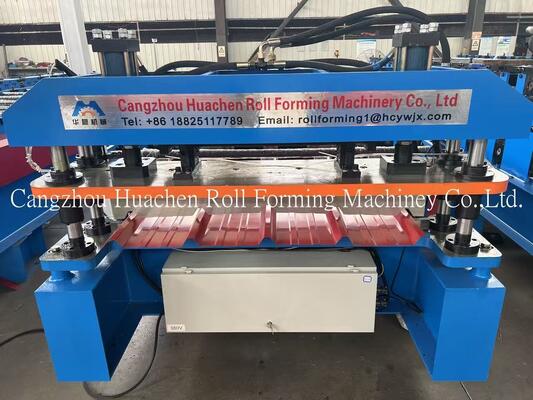

Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment
General Introduction
The aluminum metcoppo steptiles roof sheets made by this aluminium corrugating machine is a new tile model compared with the normal step tile roof sheets. The whole aluminum metcopo stepped tile roofing sheets production line consists of 5 tons automatic electric decoiler, sheet guilder, corrugation machine, hydraulic cutter, supporting tables and Mitsubishi PLC controller. With this rolling machine, the operator can produce metcopo steptiles with any length.
Application
Technical Parameters of Alluminium Metcopo Step Tile Corrugating Machine
(1) processing material: Aluzinc/galvanized steel/colored steel coil
(2) material thickness: 0.4-0.6mm
(3) effective width: 930mm
(4) feeding width: 1200mm
(5) main motor power: 5.5 kw
(6) pump power: 5.5 kw
(7) shaft diameter: 72 mm
(8) forming steps: 18 steps
(9) roller material: 45# forged steel with hard chrome plating
(10) cutting blades material: Cr12 mould steel
(11) main frame: H steel beams
(12) wall plate thickness: 16mm
(13) control system: Mitsubishi PLC computer control with inverter
(14) power supply: 380v/3 phase/50hz or designed according to customers' requirement
Main Components of Metcopo Step Tiles Corrugating Machine:
Working Flow of Metcopo Steptile Corrugation Machine
Decoiling Sheet---Guiding Sheet---Covering Film---Roll Forming---Measuring The Length---Cutting Sheet---Runout Tables
