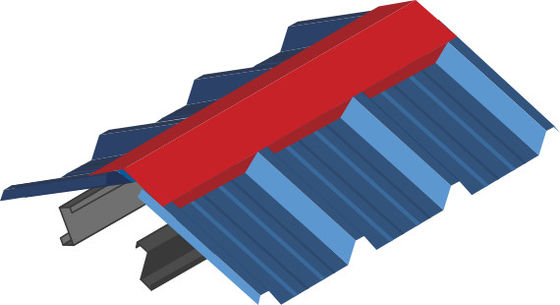

GI colored steel ridge sheet rolling machine ridge cap roll forming machine
We design and produce all kinds of corrugated metal sheet roll forming machine, including metal tile forming machine, colored glazed steel tile forming machine, highway barrier and metal billboard forming machine, shutter slat and goods shelf panel forming machine.
Feeding material: colored steel sheet,aluminum steel sheet, aluminum plating steel sheet, galvanized steel sheet, aluminum-zinc steel sheet, stainless steel sheet.
Main parameters:
| No. | main parameter of roll forming machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 400mm |
| 3 | Rollers | 12 rows |
| 4 | Dimensions | 5.6*0.8*1.2m |
| 5 | Power | 3+3kw |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity | 8-10m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Weight | About 2.6T |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Rolling material | Forging Steel 45# |
| 12 | Material of the cutting plate | Cr12 Mov |
| 13 | Hydraulic | 40# |
| 14 | Processing precision | Within 1.00mm |
| 15 | Control system | PLC control |
Other parameters
1. This product has passed international CE/ISO certificate
2. It widely used industrial factory
3. It has good features such as low noise, easy operate
4. Reasonable price and high quality
5. Equipment components: Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting
6. Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
The working process of the machine:
The pics of the machine for reference:
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
