Building Material Aluminum Roof Glazed Tile Roll Forming Machine For Gardens , Factories

ประเทศจีน Building Material Aluminum Roof Glazed Tile Roll Forming Machine For Gardens , Factories ผู้ผลิต

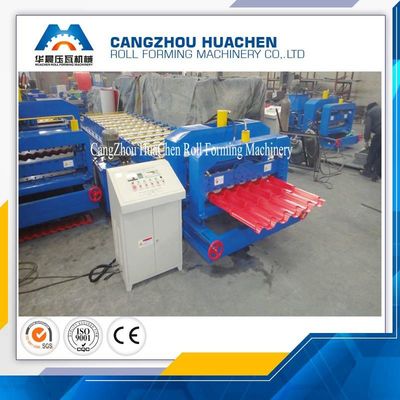

ภาพใหญ่ :  Building Material Aluminum Roof Glazed Tile Roll Forming Machine For Gardens , Factories


Place of Origin: Botou Hebei China
ชื่อแบรนด์: HC
ได้รับการรับรอง: ISO CE
Model Number: HC38


Minimum Order Quantity: 1set
ราคา: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
type: glazed tile roll forming machine width: 1250
thickness: 0.3-0.6mm capacity: 2-4m/min
Dimension: 7.5*1.5*1.2m life time: 10 years
Weight: 6.5T

Product Description


1. The Product Description of glazed tile roll forming machine


(1). Brief Introduction

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.


(2). Working Flow of Roll Forming Machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter


Great Building Material Aluminum Roof Glazed Tile Roll Forming Machine


(3).Technical Detail


A. General

Suitable Material HRB60 or equivalent
Material Thickness 0.2-0.6 mm
Dimension About 7.2*1.3*1.1m(L*W*H) , as per the drawing

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.


Automatically stop and cutting when it comes to the set



B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.

Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.


Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.


C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).


Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.


2. More Pictures of glazed tile roll forming machine

Building Material Aluminum Roof Glazed Tile Roll Forming Machine For Gardens , Factories

3. The Application of glazed tile roll forming machine


This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,

shutter door machine, floor decking machine and other associated equipment.


Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.


1. Professional

15 years' rich experience!

a.Specialized in roll forming machine since 1998.

b.Keeping improving the quality.

2. Low price

Save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.

3. PLC

Ensuring high accuracy and easy to operate!

Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

4. OEM / ODM

Customers’design, color & logo are also accepted!

Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

5. One-Years warranty, whole life service

Keep troubles far away from you!

Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .
