PLC Computer Control Shutter Door Automatic Roll Forming Equipment 8 - 10 m / Min

ความคิดเห็นของลูกค้า
เครื่องใช้งานง่าย เจ้านายดีมาก

—— Mr.Angolon จากยุโรป

นี่คือผู้ผลิตที่ดีเป็นผู้สื่อสารภาษาอังกฤษที่ดีและฉันชอบเครื่องของคุณ มันมีคุณภาพดีและน่ารัก!

—— Mr.Mark จากแอฟริกา

ผู้จัดจำหน่ายที่ดี! ฉันชอบการจัดส่งที่รวดเร็วและรอบการผลิตที่รวดเร็ว

—— Mr.Jack จากอเมริกา

สนทนาออนไลน์ตอนนี้ฉัน

PLC Computer Control Shutter Door Automatic Roll Forming Equipment 8 - 10 m / Min

PLC Computer Control Shutter Door Automatic Roll Forming Equipment 8 - 10 m / Min
PLC Computer Control Shutter Door Automatic Roll Forming Equipment 8 - 10 m / Min

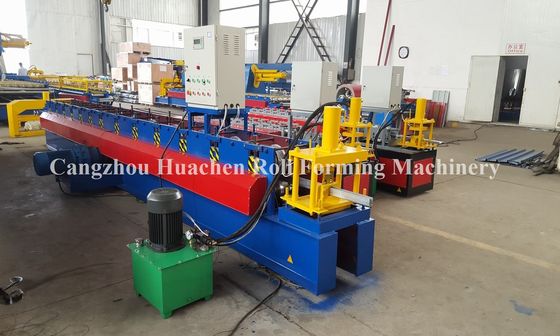

ภาพใหญ่ :  PLC Computer Control Shutter Door Automatic Roll Forming Equipment 8 - 10 m / Min

รายละเอียดสินค้า:
สถานที่กำเนิด: Botou Hebei China
ชื่อแบรนด์: HC
ได้รับการรับรอง: ISO/CE
หมายเลขรุ่น: HC110
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1set
ราคา: 5000-19000USD
รายละเอียดการบรรจุ: Main machine is nude,the computer control box is packed by carton box
เวลาการส่งมอบ: 30days
เงื่อนไขการชำระเงิน: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
สามารถในการผลิต: 20 sets/month

PLC Computer Control Shutter Door Automatic Roll Forming Equipment 8 - 10 m / Min

ลักษณะ
color: blue type: automatic
control system: PLC control cutting method: fly saw cutting
speed: 8-10m/min
แสงสูง:

steel roll forming machine

,

roll forming machinery

2.Machine parameters

1. Rack: Using 300H steel welding
2. Forming Machine-driven feeding frame forms: lateral slide-style
3. Forming Machine Type: wall-type chain drive. Wall thickness of 14 mm.
4. Shaft Diameter: 45 mm
5. Chains: 1 inch single-row
6. Forming Motor Power: 4KW
7. Forming Machine speed: 8-10m/min
8. Forming Machine Road Number: 12 stations
9. Roll Material: high quality 45 # steel Duan playing pieces
10. Hydraulic station motor: 4kw
11. Rolling thickness :0.8-1 .0 MM
12. Materials Expand Width: 100mm
13. The computer use of PLC, Taiwan and Taiwan reached
14. The machine weighs about 2.5 tons, length of 4 meters wide and 0.88 meters, 0.88 meters high.
. The forming rollers are the key of roll forming machine. We use CAD to design and manufacture the rollers. After CNC lathe, the forming rollers will be harden by vacuum heat treatment and finished the profiles again. These processes make the more accurate forming rollers, avoid the deformation during heat treatment and ensure the rollers preciseness and wear-resisting ability.

3.Components of the processing line

Manual Decoiler------------------------------1 set(free)

Roll Forming Main Station----------------1 set(customer designed)

Oil Pump----------------------------------------1 set(customer designed)

Control Box-------------------------------------1 set(Panasonic PLC or customer designed)

Simple Receiving Table--------------------2 sets(free)

4.Working Process

Aluminum shutter door slat Guide roll forming machine steel roller shutter making machine

5.Pictures Show

Aluminum shutter door slat Guide roll forming machine steel roller shutter making machineAluminum shutter door slat Guide roll forming machine steel roller shutter making machine
