รายละเอียดสินค้า:
|
| Type: | 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel | Usage: | Wall |
|---|---|---|---|
| Machine power: | 4+4KW | Speed: | 15-20m/min |
| Worker: | 1-2only | life time: | 20 years |
| แสงสูง: | sheet metal rolling equipment,roof tile roll forming machine |
||

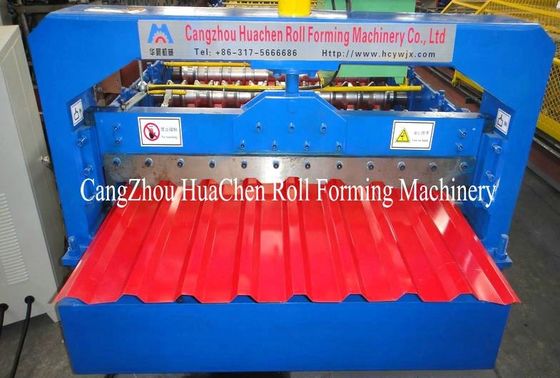

High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel
Features
The wall panel forming machine features high speed, high production, good performance, low labor and is economical. This roll former is the best choice for producing the metal sheet cold roll forming products.
Application
Our wall panel roll forming machine produces different kinds of wall panels. The roll formed panels are primarily used in temporary building sites, steel structure workshops, and other public buildings and feature fast construction speed. Our wall panels are durable, have an attractive appearance, etc.
Flow Chart
Decoiling the sheet---Guiding the sheet---Roll forming---Measuring the length---Cutting the sheet---on the output table
Machine Placement and Operator
The wall panel forming machine should be placed on an even cement floor and lifted with a lifting device with a lifting capacity not less than five tons. The machine requires space for storing materials and laying the machine and enough room for it to operate. The roll forming machine requires one operator and one porter.
Components of Wall Panel Roll Forming Machine
| Guiding Table | 1 set |
| Manual Decoiler | 1 set |
| Main Forming Machine | 1 set |
| PLC Control System | 1 set |
| Hydraulic Cutting Station | 1 set |
| Output Table | 1 set |
Parameters of wall panel roll forming machine
| Item | Description |
| Material Width | 1000mm |
| Material Thickness | 0.3mm-0.8mm |
| Material | PPGI GI |
| Yield Stress | 235Mpa |
| Material of Roller | 45# steel plated hard chromium 0.05mm |
| Diameter of Shaft | 70mm |
| Voltage | AC380v/50hz or per customer's requirement |
| Motor Power | 4kw |
| Hydraulic Power | 3kw |
| Stand | 13 |
| Control System | Mitsubishi PLC frequency conversion |
| Hydraulic Cutting Material | Cr12 heat treatment |
| Speed | 8-15m/min |
| Decoiler | 5 tons manual or hydraulic |
C18
| Item | Description |
| Material Width | 1250mm |
| Material Thickness | 0.3mm-0.8mm |
| Material | PPGI GI |
| Yield Stress | 235Mpa |
| Material of Roller | 45# steel plated hard chromium 0.05mm |
| Diameter of Shaft | 70mm |
| Voltage | AC380v/50hz or per customer's requirement |
| Motor Power | 4kw |
| Hydraulic Power | 3kw |
| Precision | 10m±2mm |
| Control System | Mitsubishi PLC frequency conversion |
| Hydraulic Cutting Material | Cr12 heat treatment |
| Speed | 8-15m/min |
| Decoiler | 5 tons manual or hydraulic |
Our advantage
We are a China-based wall panel forming machine manufacturer and supplier. Through our years of experience and continued efforts of our dedicated staff, we offer customers a great variety of roll forming machines, like double layer forming machines, tile forming machines, wall panel forming machines, sandwich panel production lines, and others. Our location in Wuxi City gives us easy access to convenient air, land and sea transportation. This keeps our costs down, and reduces transportation costs for our customers.
If you have a need for any of our products, please feel free to contact us at We . We look forward to working with you.
