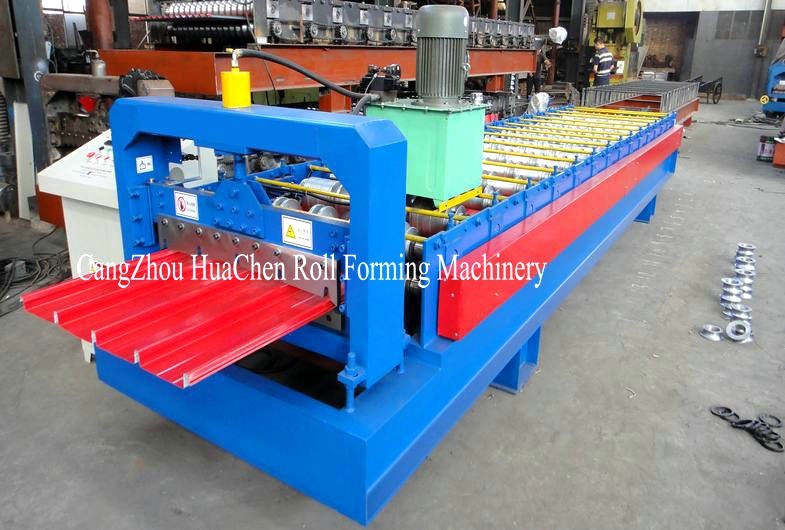

Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised

Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised
Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised
Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised

ภาพใหญ่ :  Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised

รายละเอียดสินค้า:
สถานที่กำเนิด: Botou Hebei China
ชื่อแบรนด์: HC
ได้รับการรับรอง: ISO
หมายเลขรุ่น: HC37
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1set
ราคา: 8000-29000USD
รายละเอียดการบรรจุ: Main machine is nude,the computer control box is packed by carton box
เวลาการส่งมอบ: 30days
เงื่อนไขการชำระเงิน: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
สามารถในการผลิต: 20 sets/month

Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised

ลักษณะ
แสงสูง:

roof tile roll forming machine

,

cold roll forming machine

Aluminium / Galvanised Corrugated Steel Roofing Sheet Roll Forming Machine



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate:1115mm

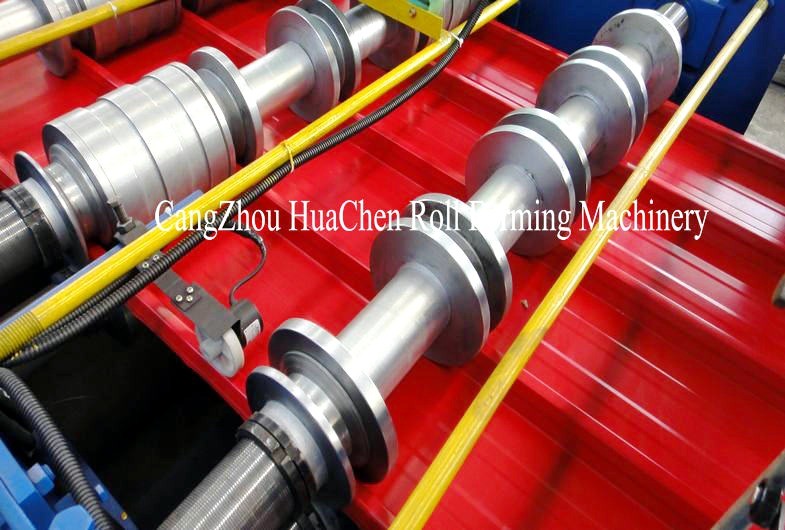

3. Rollers: 16 rows

4. Dimensions: 7.8*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

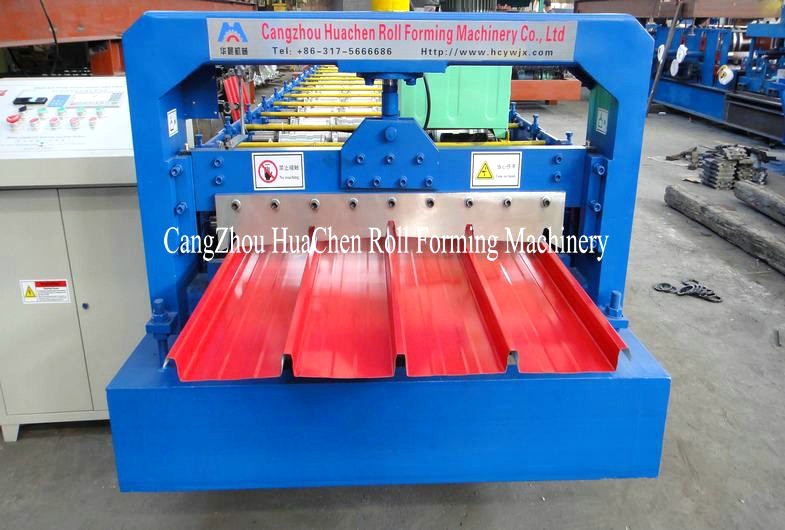

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Roofing sheet Roll Forming Machine Main parameter

No.

   Main parameter of Roofing sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1115 mm

3

Rollers

16 rows

4

Dimensions

7800*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

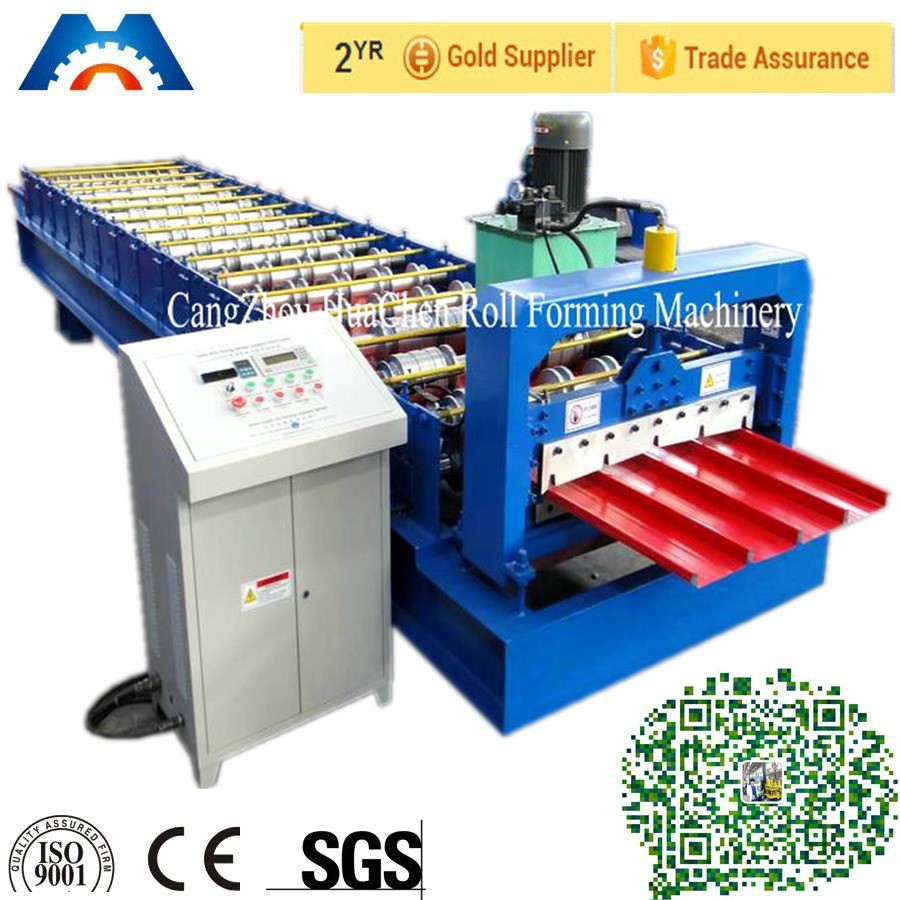

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised 0Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised 1Steel Roofing Sheet Roll Forming Machine Aluminium / Galvanised 2



Application

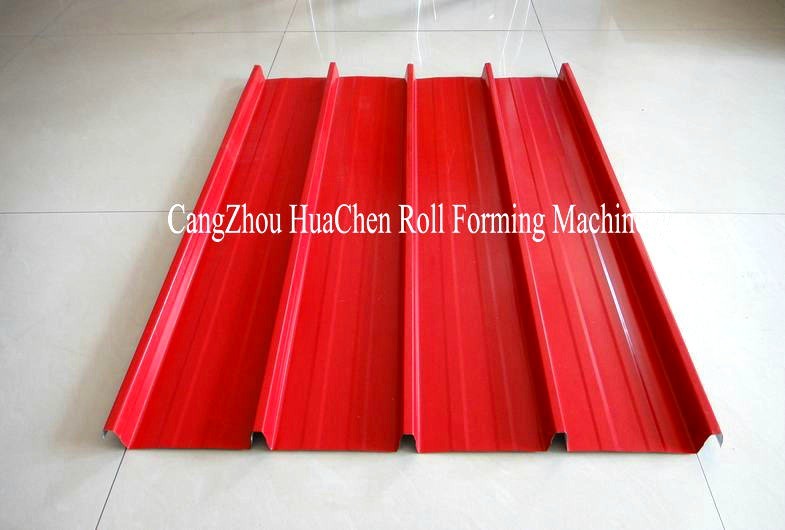

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage





1. elegant appearance

2.high quality steel structure

3. One year free guarantee

4. lifelong maintain

5. Panasonic PLC
