Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 165mm
3. Rollers: 12rows
4. Dimensions: 3.5*1.15*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:

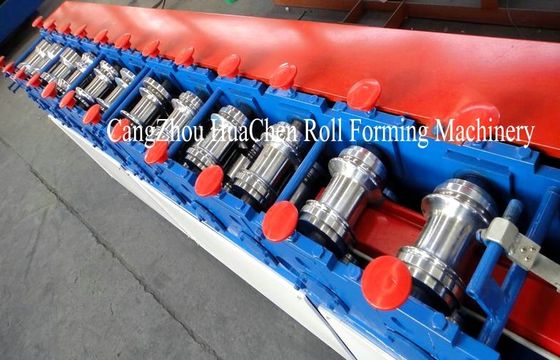

Steel Shutter Door Slat Roll Forming Machine Main parameter
|
No. |
Main parameter of Steel Shutter Door Slat Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
165mm |
|
3 |
Rollers |
12 rows |
|
4 |
Dimensions |
3500*1150*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.6mm |
|
7 |
Productivity |
15m/min |
|
8 |
Diameter of the roller |
Φ36 mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |

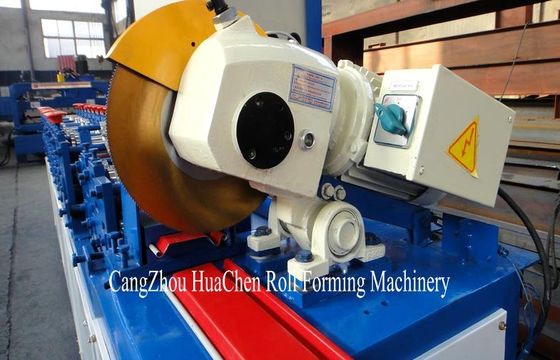

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

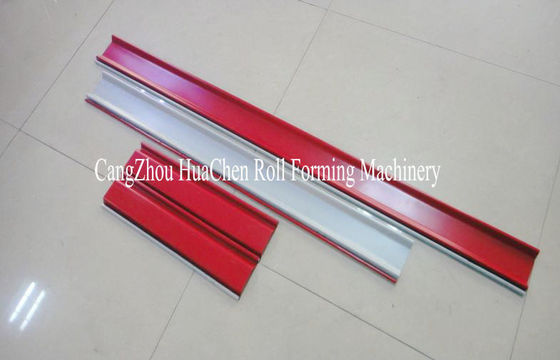

This type of sheet can be widely used as the door of garage, storage and supermarket.
Competitive Advantage
1. noiseless running
2. good quality
3. high grade steel
4. maintenance-free
5. easy to use
