16 -18 Station Free Design Steel Tile Double Layer Roll Forming Machine PPGI / GI

Place of Origin: CN
ชื่อแบรนด์: HC
ได้รับการรับรอง: CE ISO
Model Number: HC19-20
Minimum Order Quantity: 1 set
ราคา: USD19000-25000 per set
Packaging Details: Standard package
Delivery Time: 35 days
Payment Terms: D/A, L/C, D/A, D/P, T/T
Supply Ability: 20 sets per month
Usage: Roof and wall Material: PPGI, GI
Operation: Need 1 person Capacity: 2-10m/min
Weight: 6T Size: 7*1.55*1.91m
Life time: 30 Years Warranty: Whole life

metal roll forming machine


corrugated roll forming machine


HC Villa Roof Steel Tile Double Layer Roll Forming Machine PPGI / GI



Can't find a reliable supplier for ? Huachen is your best choise.

Cangzhou huachen roll forming machinery Co., Ltd is the manufacturer specilized in Roof Steel Tile roll forming machine. We provide an extensive line of products, which includes roof and wall panel machine , roof tile machine, purline forming machine, floor decking machine,gutter forming  machine,roller shutter machine etc.


What's your machine application ?
Our roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.


How about the parameters for Roll Forming Machine? If need some change, just tell me

High Speed Blue Double Layer Roll Forming Machine For Roof Cladding
1 Suitable material Color steel sheet ,galvanized steel sheet, aluminium sheet
2 Width of material 1250mm or as you required
3 Thickness of material 0.3-0.6mm or as your needs
4 Working speed 2-10m/min
5 Main motor power 4kw with cycloidal reducer
6 Hydraulic station power 4kw
7 Electrical control system PLC control system
8 Shaft diameter 70mm
9 Roller station

Up layer:10rows

Down layer:11 rows

10 Material of roller High grade 45# forged steel plated with hard chrome plating
11 Material of cutting Cr12 mould steel with quenched treatment
12 Voltage 380V 3phase 50HZ or as the customer's requirements
13 Dimension 7000x1500x1910mm
14 Weight About 6 T
15 Working time Can be 24 hours
16 Workers 1-2 Only





















Please note: All the parameters can be designed as customer's requirements.


Clear about working process for Roll Forming Machine ?
Decoiling--Feeding & Guiding--Roll Forming--Step pressing--Cutting--Finished Products To Support Table

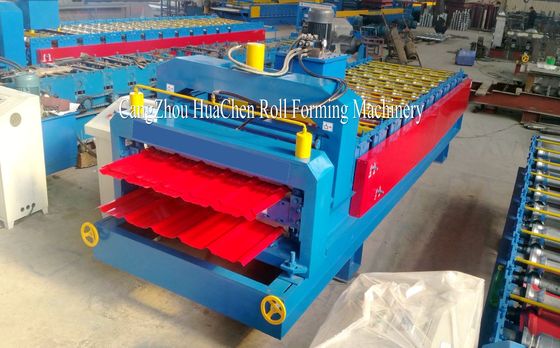

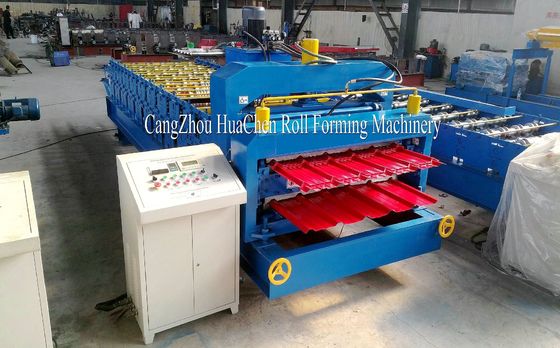

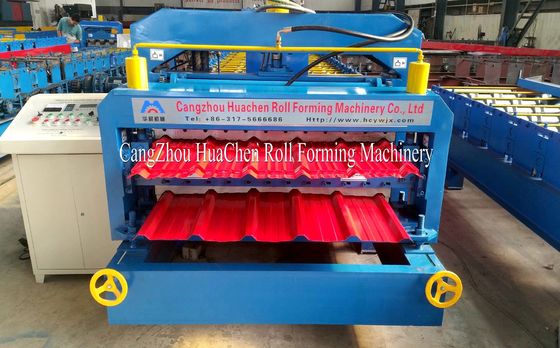

16 -18 Station Free Design Steel Tile Double Layer Roll Forming Machine PPGI / GI 016 -18 Station Free Design Steel Tile Double Layer Roll Forming Machine PPGI / GI 1


Where is your factory located ? How can I visit you ?
Huachen Roll forming machinery is located at Industrial Zone of Botou , Hebei Province of China. Welcome to visit us by:

1.Fly to BEIJING or TIANJIN Airport, then take high speed train from BEIJING NAN to CANGZHOU XI, about 1 hour, I will pick up you there.
2.Fly to SHANGHAI Airport, then take high speed train from SHANGHAI HONGQIAO to CANGZHOUXI, about 4.5 hour,I will pick up you there.


Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
