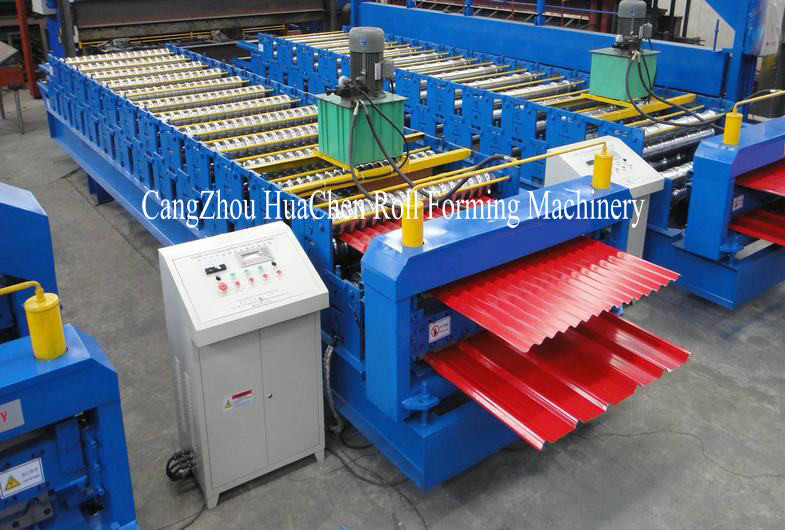

CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase

CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase
CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase
CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase

ภาพใหญ่ :  CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase

รายละเอียดสินค้า:
Place of Origin: Botou Hebei China
ชื่อแบรนด์: HC
ได้รับการรับรอง: ISO/CE
Model Number: HC18-28
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase

ลักษณะ
color: blue control system: PLC control
type: full automatic working speed: 8-10m/min
cutting method: hydraulic cuting
แสงสูง:

sheet metal roll forming machines

,

corrugated roll forming machine

CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase





Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1250mm

3. Rollers: 10/14 rows

4. Dimensions: 8.2*1.55*1.91m

5. Power: 4+4kw

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Main parameter

No.

 Main parameter of Double layer roll forming machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :10 rows

Down level :14 rows

4

Dimensions

8200*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting

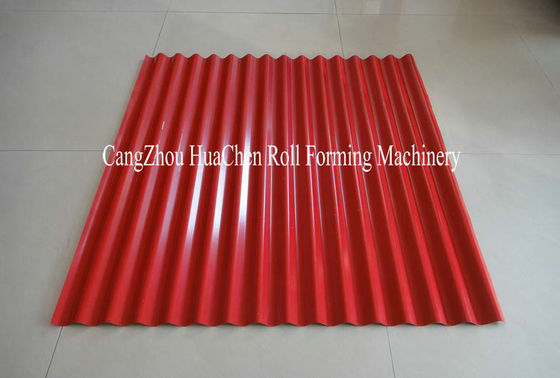

CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase 0





Application:



This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site





Competitive Advantage



1. good service

2. easy installation

3. short delivery time

4. professional design team

5. easy to use

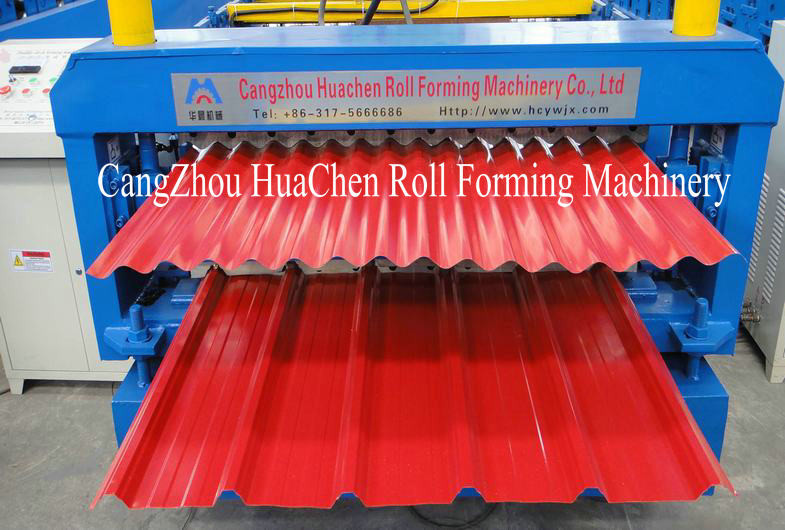

CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase 1

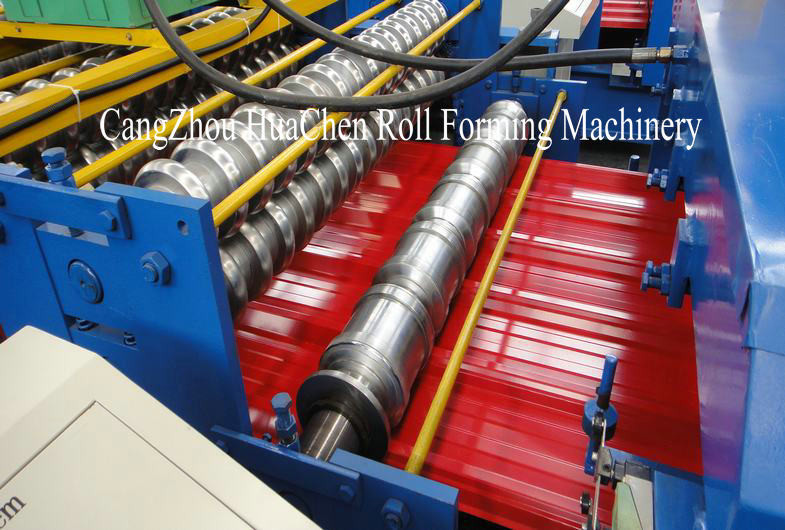

CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase 2

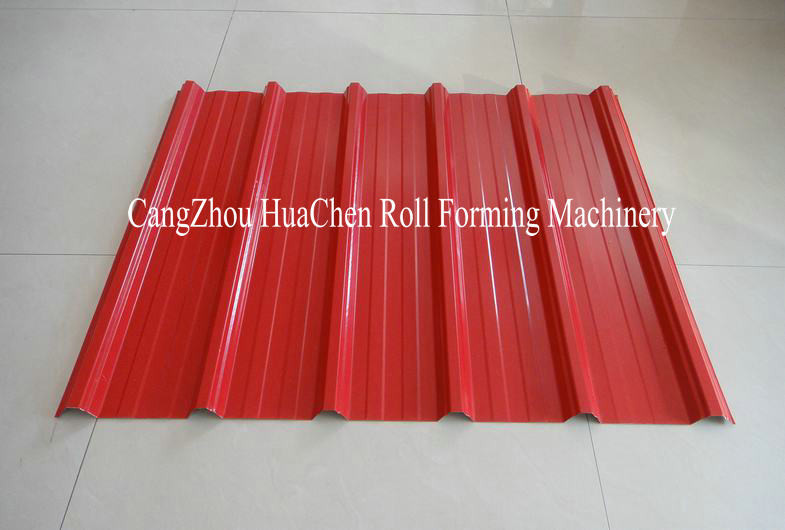

CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase 3
CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase 4
